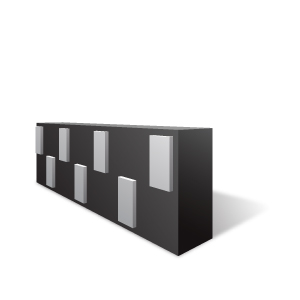

RClamp3346PQ
Not Recommended for New Designs.
The RClamp®3346PQ provides ESD protection for High-speed data interfaces. It features a high maximum ESD withstand voltage of ±17kV contact and ±20kV air discharge per IEC 61000-4-2. RClamp3346PQ is designed to minimize both the ESD peak clamping and the TLP clamping.Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP3346PQ
Part Description
LOW CAPACITANCE RCLAMP 6-LINE ESD PROTECTION
# of leads
7
Package Type
SGP2708N7
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
