概要
RailClamp® is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT(electrical fast transients).
The complete datasheet for this product is restricted. To request a complete copy of this datasheet, please fill out our "Request for Information" form.
Packaging

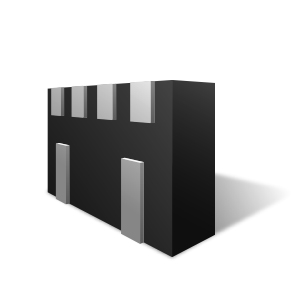

- SLP1710P4T
Order Codes
- RClamp1624T.TCT: Lead-Free, RoHS/WEEE Compliant, 3000 pcs, Tape and Reel
PB Free/ROHS
Learn More →Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects USB DP, DM, and ID Pins to 5V
- Protects USB VBUS operating up to 12V
- Low capacitance (<1pF) on DP, DM, and ID Pins
- No insertion loss to 2.0GHz
- Low leakage current
- Low clamping voltage
| Documents | Release Date | Type |  |
|---|---|---|---|
| RCLAMP1624T Datasheet | 2018-12-15 | | |
