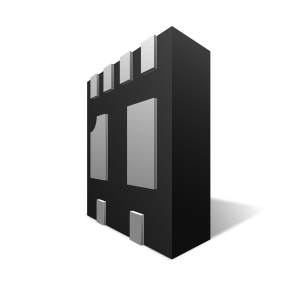

RClamp1255P
RailClamp® TVS arrays are low capacitance ESD protection devices designed to protect high speed data interfaces. The RClamp®1255P provides dedicated surge and ESD protection for USB ports. It is designed to replace multiple discrete components in portable applications.


Features
- ESD and surge protection for USB Voltage Bus to
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-5 (Lightning) 100A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- ESD protection for USB data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±10kV (contact)
- Protects USB DP, DM, and ID Pins operating up to
- +/- 4V
- Protects USB VBUS operating up to 12V
- Low capacitance (<0.50pF) on DP, DM, and ID Pins
- Low clamping voltage
- Low dynamic resistance on DP, DM, and ID Pins
- Solid-state silicon-avalanche technology
- USB 2.0
- USB OTG
- uUSB
アプリケーション
Packaging
- SLP2018P6 6L
Order Codes
- RClamp1255P.TGT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP1255P
Part Description
LOW CAPACITANCE RCLAMP SURGE PROTECTION FOR USB INTERFACES
# of leads
6
Package Type
SLP2018P6
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
