The RailClamp family is a series of ultra low capacitance Transient Voltage Suppressors (TVS) designed to protect high speed data interfaces.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

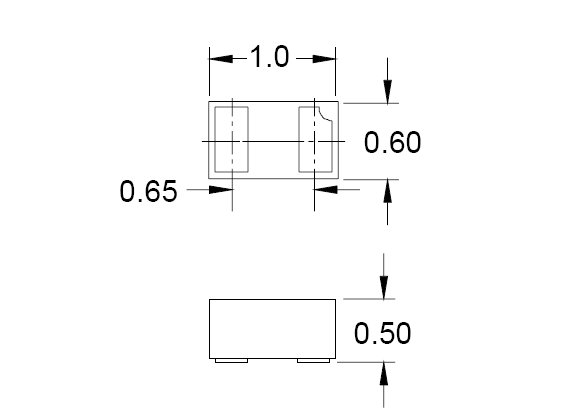

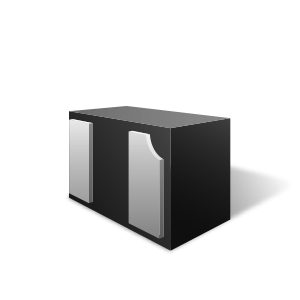

- Ultra-small package (1.0 x 0.6 x 0.5mm)

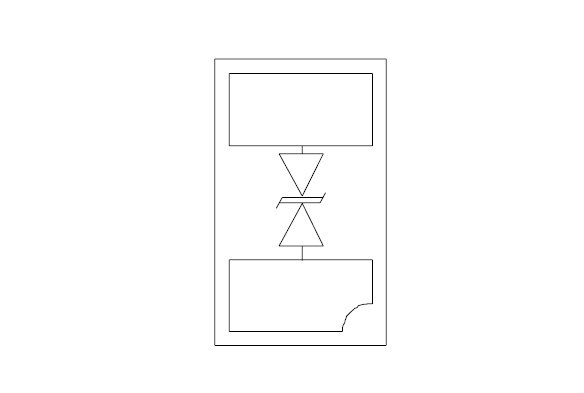

- Protects one data or I/O line
- Low capacitance: 0.3pF typical
- Low clamping voltage
- Low operating voltage: 8.0V
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- Cellular Handsets & Accessories
- Digital Visual Interface (DVI)
- Display Port
- MDDI Ports
- USB Ports
- PCI Express
- Serial ATA
- 3000 pcs. Tape & Reel
Datasheets & Documentation
Login or register for mySemtech to gain access to restricted product documentation and to add documents to your Watch List for update alerts
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
