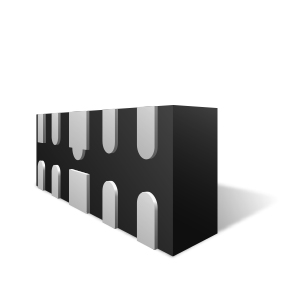

RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces.
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects four I/O lines
- Low capacitance: 0.25pF typical (I/O to I/O)
- Low clamping voltage
- Low operating voltage: 5V
- Solid-state silicon-avalanche technology
- HDMI 1.3 and HDMI 1.4
- USB 3.0
- Digital Visual Interface (DVI)
- DisplayPortTM Interface
- LVDS Interfaces
- PCI Express
- eSATA Interfaces
- SLP2710P8 10-pin
- RClamp0584J.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
