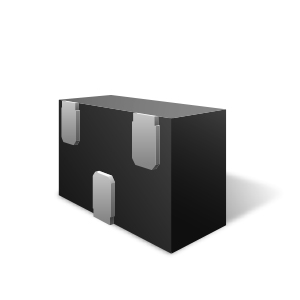

RClamp0552T
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. They are designed to replace 0201 size multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Features
- High ESD withstand Voltage: +/-17kV (Contact and Air) per IEC 61000-4-2
- Very small PCB area: 0.6mm2
- Protects up to two high-speed data lines
- Low reverse current: <5nA typical (VR=5V)
- Working voltage: +/- 5V
- Low capacitance: <0.4pF (VR=0V)
- Low dynamic resistance: 0.90 Ohms (Typ)
- Solid-state silicon-avalanche technology
- HDMI 1.3 and HDMI 1.4
- USB 3.0
- MHL
- eDP
- LVDS Interfaces
- eSATA Interfaces
アプリケーション
Packaging
- SLP1006N3T 1.0 x 0.6 x 0.40 mm package
Order Codes
- RClamp0552T.TNT: Pb-Free, Halogen Free and RoHS/WEEE Compliant, 10,000 pieces tape and reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP0552T
Part Description
ULTRA LOW CAPACITANCE TVS 2-LINE ESD PROTECTION
# of leads
3
Package Type
SLP1006N3T
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
