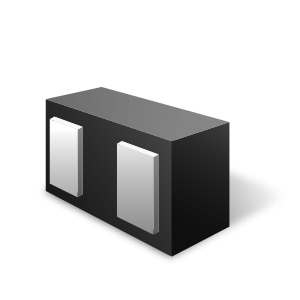

RClamp0521Z
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces.
Features
- High ESD withstand Voltage: +/-17kV (Contact) and
- +/- 25kV (Air) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4
- Ultra-small 0201 package
- Protects one high-speed data line
- Low reverse current: <10nA typical (VR=5V)
- Working voltage: +/- 5V
- Low capacitance: 0.35pF typical
- Dynamic resistance: 0.90 Ohms (Typ)
- Solid-state silicon-avalanche technology
- HDMI 1.3 and HDMI 1.4
- USB 2.0
- MHL
- LVDS InterfacesFM Antenna
- PCI Express
- eSATA Interfaces
アプリケーション
Packaging
- SLP0603P2X3
Order Codes
- RClamp0521Z.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP0521Z
Part Description
ULTRA SMALL RCLAMP 1-LINE ESD PROTECTION
# of leads
2
Package Type
SLP0603P2X3A
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
