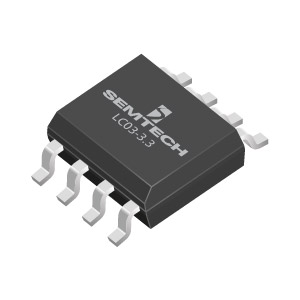

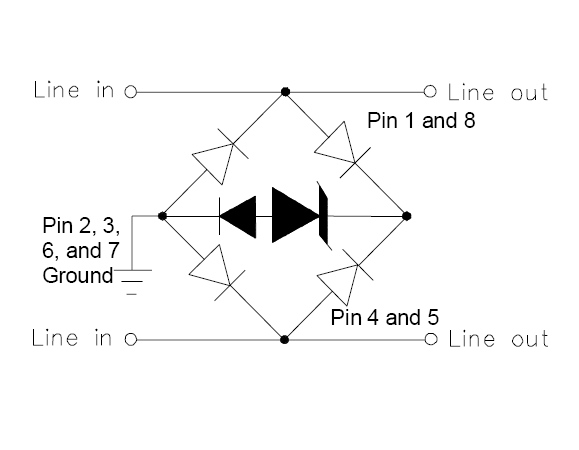

LC03-3.3
The LC03-3.3 transient voltage suppressor is designed to protect components which are connected to high speed data and telecommunication lines from voltage surges caused by lightning, electrostatic discharge (ESD), and electrical fast transients (EFT).
Features
- 1800 watts peak pulse power (tp = 8/20 µs)
- Transient protection for high-speed data lines to
- Telcordia (Bellcore) 1089 (intra-building) 100 A (2/10 µs)
- ITU K.20 IPP = 40 A (5/310 µs)
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- Protects two lines in common and differential mode
- Low capacitance for high-speed interfaces
- Low operating voltage: 3.3 V
- Low clamping voltage
- Integrated structure saves board space and increases reliability
- Solid-state EPD technology
- Lead-free, RoHS and WEEE compliant
- Low-voltage interfaces
- T3/E3
- 10/100/1000 Ethernet
- Set-top boxes
- ISDN interfaces
アプリケーション

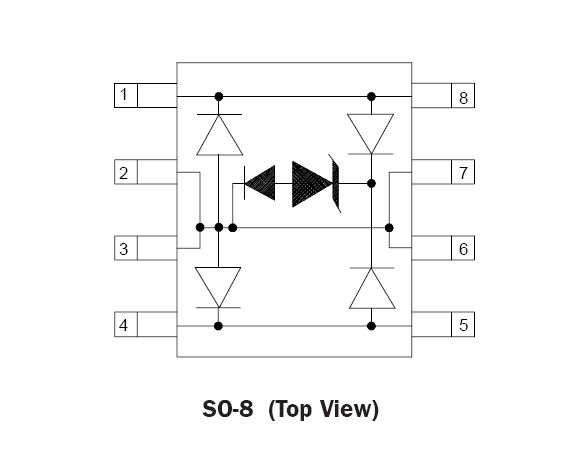

Packaging
- SO-8
- 500 pcs. Tape & Reel
Order Codes
- LC03-3.3.TBT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
LC03-3.3
Part Description
LOW CAPACITANCE 3.3 VOLT TVS FOR HIGH-SPEED INTERFACES
# of leads
8
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
