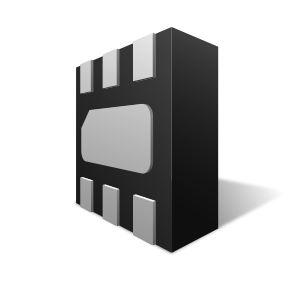

RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package (1.6 x 1.6mm) saves board space
- Protects USB DP, DM, and ID Pin operating up to 5.5V
- Protects USB VBUS operating up to 28V
- Low capacitance (<1pF) on DP, DM, and ID Pins
- No insertion loss to 2.0GHz
- Low leakage current
- Low clamping voltage
- Large ground pad for increased ESD performance
- Solid-state silicon-avalanche technology
- USB 2.0
- USB OTG
- RClamp3654PATCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant
