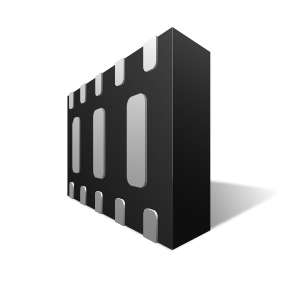

RClamp2574NQ
RailClamp® TVS diodes are specifically designed to protect sensitive components which are connected to
high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE
(cable discharge events), and EFT (electrical fast transients).
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 40A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects two line pairs
- Low capacitance for high-speed interfaces
- Low variation in capacitance vs. bias voltage
- Low clamping voltage
- Qualified to AEC-Q100 Grade1
- Solid-state silicon-avalanche technology
- 10/100/1000 Ethernet
- Central Office Equipment
- LVDS Interfaces
- MagJacks / Integrated Magnetics
- Notebooks / Desktops / Servers
アプリケーション
Packaging
- SLP3020N10 10L
Order Codes
- RClamp2574NQ.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP2574NQ
Part Description
HIGH POWER TVS FOR ETHERNET INTERFACES
# of leads
10
Package Type
SLP3020N10
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
