The μClamp®3673P is a high-surge transient voltage suppressor (TVS) optimized for protection of sensitive digital sensors used in proximity switches and industrial control applications. The μClamp3673P protects the components from over-voltages caused by electrostatic discharge (ESD), electrical fast transients (EFT) and tertiary lightning.
- Transient protection for proximity sensors:
- IEC 61000-4-2 (ESD): ±30 kV (contact & air)
- IEC 61000-4-4 (EFT): 40A - IEC 61000-4-5 (lightning surge): 18A (tp = 8/20 μs)
- Ultra-small package (3.0 x 1.6 x 0.57mm)
- Protects one three line sensor
- Low clamping voltage
- High operating voltage: 36V
- Solid-state silicon-avalanche technology
- Two and three wire DC high-side and low-side proximity switches
- I/O link
- Digital sensor input protection
- Industrial controls
- 24V - 36V DC supply protection

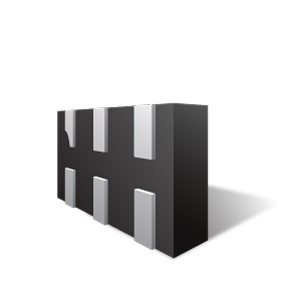

- SGP3016N6 package
- μClamp3673P. TCT: Pb-free, Halogen-free, RoHS/WEEE-compliant, 3,000 pcs.
