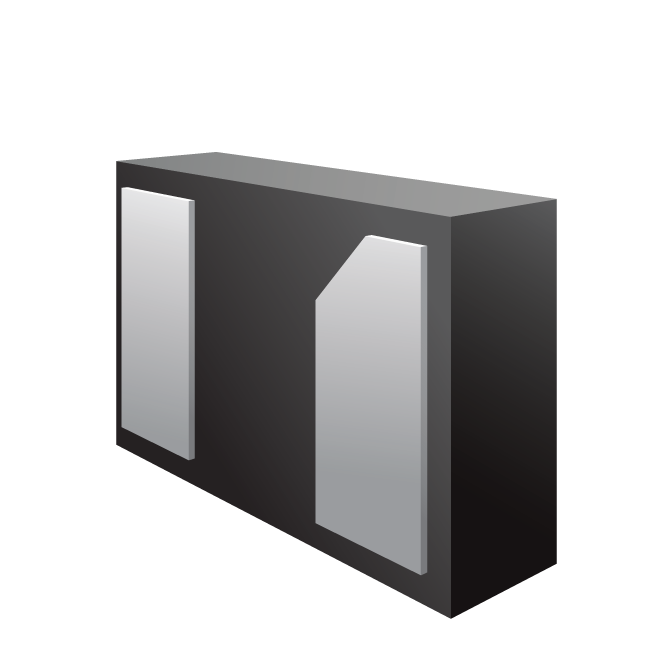

uClamp1521ZV
μClamp® series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. μClamp products offer desirable characteristics for board-level protection including fast response time, low operating and clamping voltage and no device degradation.
Features
- High ESD withstand voltage: ±30kV (contact & aIr) per IEC 61000-4-2
- High peak pulse current capability: 18A (tp = 8/20μs)
- Ultra-small package(1.0 x 0.6 x 0.25mm)
- Protects one I/O or power line
- Low ESD clamping voltage
- Working voltage: ± 15V
- Solid-state silicon-avalanche technology
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- Cellular handsets & accessories
- Battery protection
- Notebooks & handhelds
- Audio lines
アプリケーション
Packaging
- DFN 1.0 x 0.6 x 0.25mm-2 Lead – 15,000 pcs
Order Codes
- uClamp1521ZVTFT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
UCLAMP1521ZV
Part Description
1-LINE ESD & SURGE PROTECTION
# of leads
2
Package Type
SLP1006P2X3F
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
