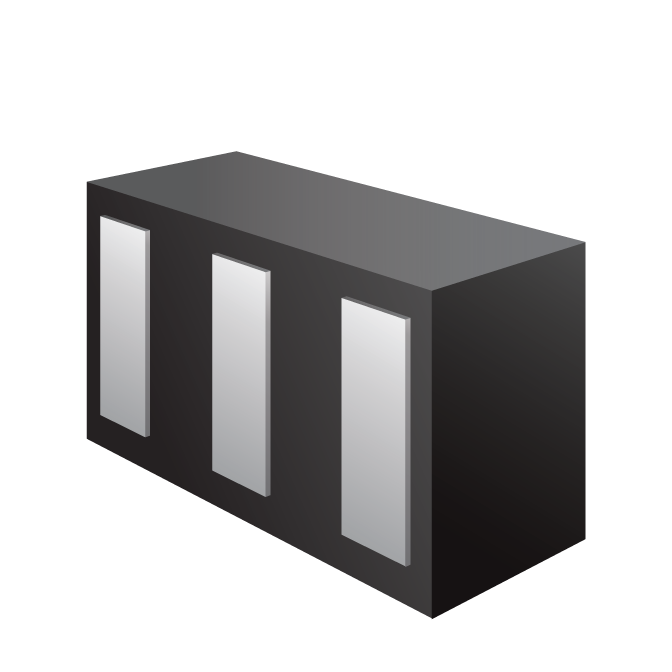

uClamp0512ZA
uClamp®0512ZA is an ultra-small electrostatic discharge (ESD) protection device designed to protect two high-speed lines in an 0201 footprint. This revolutionary package design reduces board space requirements by more than 50% over existing single line solutions. The combination of small size and high ESD surge capability makes them ideal for use in portable applications such as cellular phones, digital cameras and tablets.
Features
- High ESD withstand voltage IEC 61000-4-2 (ESD) 15kV (air), 12kV (contact)
- Very small PCB area
- Protects two data lines
- Working voltage: 5V
- Low reverse leakage current
- Low ESD peak clamping voltage
- Low dynamic resistance
- Solid-state silicon-avalanche technology
- Cellular handsets and accessories
- Keypads, side keys, audio ports
- Portable instrumentation
- Notebook computers
- Tablet PC
アプリケーション
Packaging
- DFN 0.62 x 0.32 x 0.25mm - 3 lead package
Order Codes
- uClamp0512ZATFT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
UCLAMP0512ZA
Part Description
ULTRA SMALL UCLAMP 2-LINE ESD PROTECTION
# of leads
3
Package Type
DFN
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
Au
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
