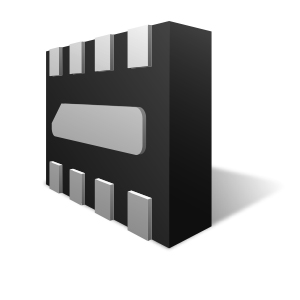

uClamp0508T
The μClampTM series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. It features large cross-sectional area junctions for conducting high transient currents. TVS diodes offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)
- Ultra-small package
- Protects eight data lines
- Low clamping voltage
- Working voltage: 5V
- Low capacitance (10pF)
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Notebooks & Handhelds
- Micro SD Ports
- MMC & HS-MMC Ports
- Portable Instrumentation
- Digital Cameras
- Peripherals
アプリケーション
Packaging

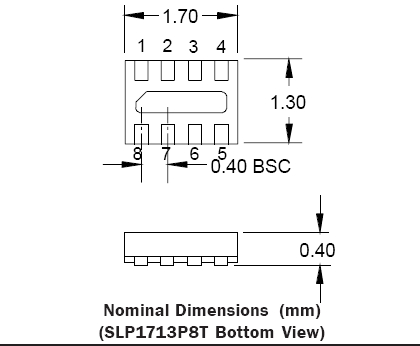

- SLP1713P8T
Order Codes
- uClamp0508T.TCT: Lead Free, RoHS and WEEE Compliant, 3000 pcs, tape and reel
Pb(Lead)-Free/RoHS-Green Info
