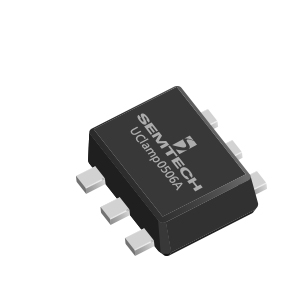

uClamp0506A
The μClampTM series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. Each device requires less than 2.9mm2 of PCB area and will protect up to five lines. They are bidirectional devices and may be used on lines where the signal polarities swing above and below ground.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)

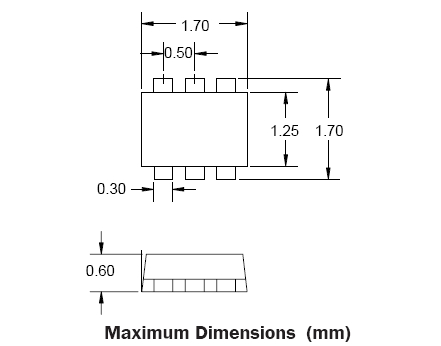

- Ultra-small SC-89 package (1.7 x 1.7 x 0.6mm) requires less than 2.9mm² of PCB area
- Working voltage: 5V
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Cellular Handsets and Accessories
- Cordless Phones
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- MP3 Players
アプリケーション
Packaging

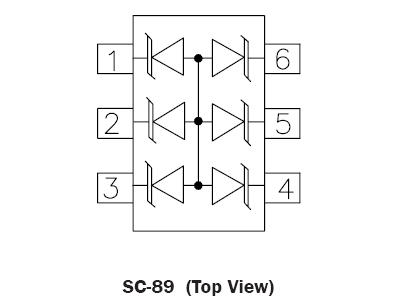

- SC-89
Order Codes
- uClamp0506A.TCT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
UCLAMP0506A
Part Description
5-LINE, ESD PROTECTION ARRAY
# of leads
6
Package Type
SOT-666
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
