The µClamp™ series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multiplayer varistors (MLVs) in potable applications such as call phones, notebook computers, and other portable electronics. it features large cross-sectional area junctions for conducting high transient currents. they offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

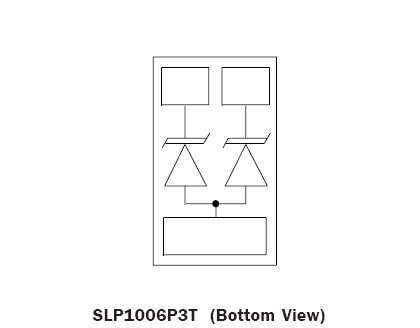

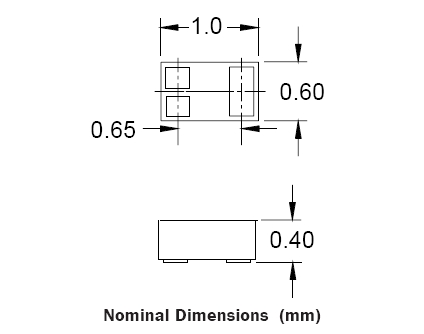

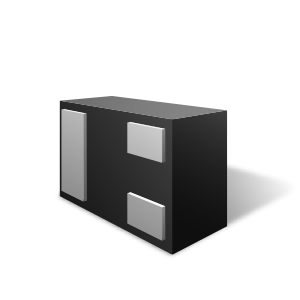

- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects two data lines
- Low clamping voltage
- Working voltage: 5V
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Personal Digital Assistants (PDAs)
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- MP3 Players
- uClamp0502T.TCT: Lead Free, RoHS/WEEE Compliant, 3000 pcs, Tape and Reel
