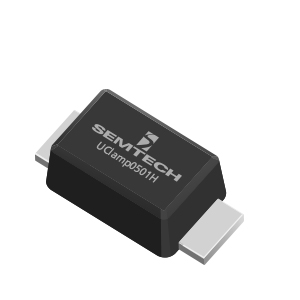

uClamp0501H
The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
Features
- Working voltage: 5 V
- Protects one I/O or power line
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50 ns)
- Cable discharge event (CDE)

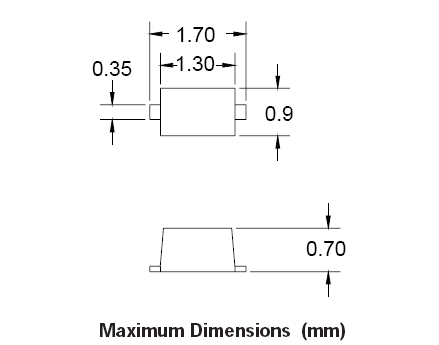

- Ultra-small SOD-523 package (1.7 x 0.9 x 0.7 mm)
- Low clamping voltage
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular handsets & accessories
- Cordless phones
- Personal digital assistants (PDAs)
- Notebooks & handhelds
- Portable instrumentation
- Digital cameras
- Peripherals
- MP3 players
アプリケーション

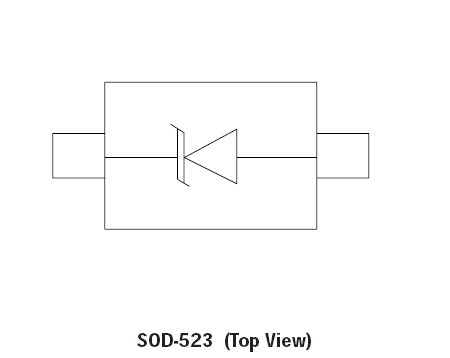

Packaging
- SOD-523
Order Codes
- UCLAMP0501H.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
UCLAMP0501H
Part Description
UCLAMP 1 LINE ESD PROTECTION
# of leads
2
Package Type
SOD-523
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
mySemtech
