The μClamp TVS diodes are designed for automobile applications and qualified to AEC-Q100 Grade 3. They offer superior electrical characteristics such as lower clamping voltage and no device degradation when compared to other technologies. They are designed to protect sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD), lightning, electrical fast transients (EFT), and cable discharge events (CDE).
- Transient protection for data lines to
- IEC 61000-4-2 (ESD)
- IEC 61000-4-4 (EFT)
- Cable Discharge Event (CDE)
- Ultra-small package
- Protects one data line
- Low clamping voltage
- Working voltage: 3.0V
- Low leakage current
- Solid-state silicon-avalanche technology
- AEC-Q100 Grade 3 Qualified
- Automobile Applications
- Cellular Handsets & Accessories
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- MP3 Players

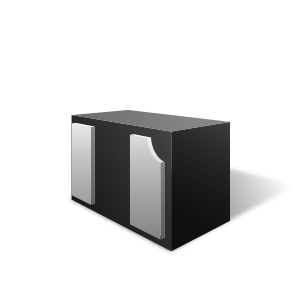

- SLP1006P2 - 1.0 x 0.6 x 0.5 mm, 10,000 pcs. Tape & Reel.
- uClamp0301PQTNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant.
