概要

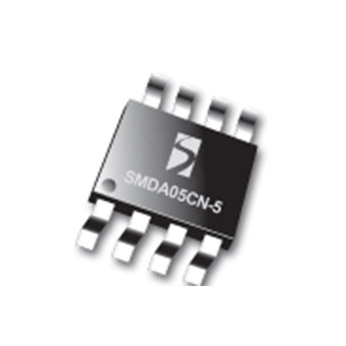

The SMDAxxCN-5 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Packaging
- SO-8
- 500 pcs. Tape & Reel - Min order req.
Order Codes
- SMDA05CN-5.TBT
PB Free/ROHS
Learn More →Features
- 300 watts peak pulse power (tp = 8/20 µs)
- Protects up to 5 bidirectional lines
- Working voltage: 5 V
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- Low leakage current
- Low operating voltage
- Low clamping voltage
- Solid-state silicon-avalanche technology
- Small SO-8 surface-mount package
- Lead-free, RoHS and WEEE compliant
| Documents | Release Date | Type |  |
|---|---|---|---|
| SMDA05CN-5 Datasheet | 2019-05-25 | | |
アプリケーション
- RS-232 data lines
- RS-423 data lines
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- Peripherals
- Set-top boxes
