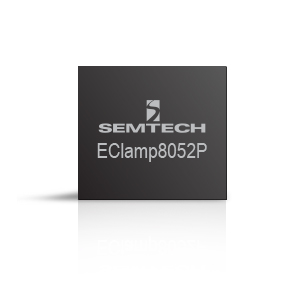

EClamp8052P
EClamp®8052P integrates common mode filtering with low capacitance ESD protection and is designed specifically for MIPI, MHL, and USB interfaces. Each device provides filtering and ESD protection for one high-speed differential pair.
Features
- Transient Protection to
- IEC 61000-4-2 (ESD) 30kV (Air), 25kV (Contact)
- IEC 61000-4-4 (EFT) 4kV (5/50ns)
- IEC 61000-4-5 (Lightning) 6A (8/20μs)
- ISO-10605 (ESD) 30kV (Air), 25kV (Contact)
- Qualified to AEC-Q100, Grade 1
- Package design optimized for high speed lines
- ESD protection and common mode filtering for two high-speed lines
- High differential bandwidth cutoff frequency
- Low ESD Clamping Voltage
- Dynamic Resistance: 0.50 Ω (Typ)
- Solid-State Silicon-Avalanche Technology
- Automotive Applications
- Industrial Equipment
- USB 2.0 / USB 3.0
- HDMI / MHL
- MIPI Camera Serial Interface (CSI)
- MIPI Display Serial Interface (DSI)
アプリケーション
Packaging
- SGP1917N5: 1.9 x 1.70 x 0.55 mm
Order Codes
- EClamp8052P.TCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, 3,000 pcs.
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
ECLAMP8052P
Part Description
2-LINE COMMON MODE FILTER AND LOW CAPACITANCE ESD PROTECTION
# of leads
7
Package Type
SGP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
Related Parts
ECLAMP8052PQTCT
