EClamp2410P

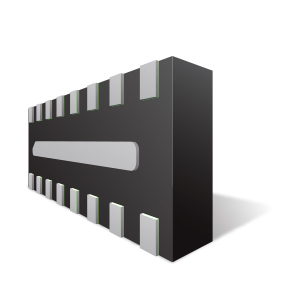

The EClamp®2410P is a combination EMI filter and line termination device with integrated TVS diodes for use on Multimedia Card interfaces. This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. They have been optimized for protection of T-Flash/MicroSD interfaces in cellular phones and other portable electronics.
Features
- Bidirectional EMI/RFI fi ltering and line termination with integrated ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- TVS working voltage: 5V
- Termination Resistors: 45Ω
- Pull Up Resistors: 15kΩ (3 each) and 50kΩ
- Typical Capacitance per Line: 12pF (VR = 2.5V)

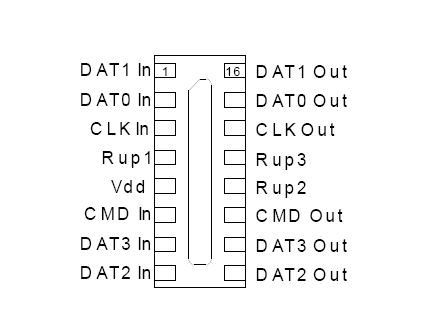

- Protection and termination for six lines + Vdd
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- T-Flash / MicroSD Interfaces
- MMC Interfaces
- CDMA, GSM, 3G Cell Phones
アプリケーション
Packaging

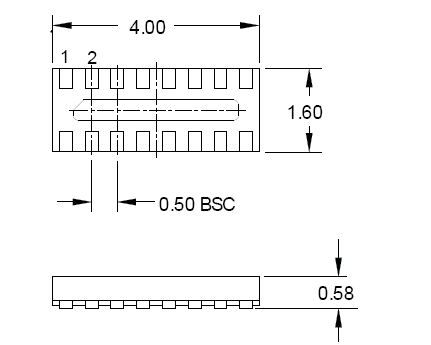

- SLP4016P16
- 3000 pcs. Tape & Reel
Order Codes
- EClamp2410P.TCT
Pb(Lead)-Free/RoHS-Green Info
