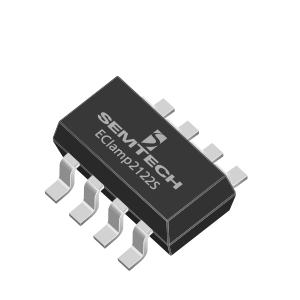

EClamp2122S
Not recommended for new designs.
The EClamp®2122S is combination EMI filter and line termination device with integrated TVS diodes for use on USB interfaces. This device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. They have been optimized for protection of USB interfaces in cellular phones and other portable electronics.
Features
- EMI/RFI filtering and line termination with integrated
- ESD protection
- ESD protection for USB power (VBUS) and data lines (D+ & D-) to IIEC 61000-4-2 (ESD), ±25kV (air),
- ±20kV (contact)
- Filtering and termination for two USB data lines
- Series resistors for impedance matching
- Integrated pull down resistors as required by the USB specification for downstream ports
- Low TVS operating voltage (5.25V)
- Solid-state technology
- USB 1.1 Interfaces
- USB Hubs
- Printers
- Monitors
- Servers, Desktop, and Notebook computers
アプリケーション
Packaging
- SOT-23
Order Codes
- EClamp2122S.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
ECLAMP2122S
Part Description
USB DOWNSTREAM PART FILTER & TVS FOR EMI FILTERING AND ESD PROTECTION
# of leads
6
Package Type
SOT-23
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
