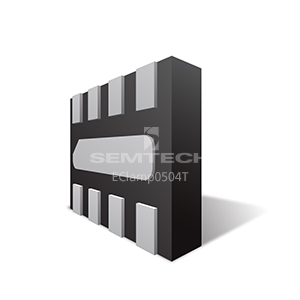

EClamp0504T
The EClamp®0504T is designed to protect sensitive electronics from damage or latch-up due to ESD. This stateof-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. It has been optimized for protection of digital lines in cellular phones and other portable electronics.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±17kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)
- Protects four data lines
- TVS working voltage: 5V
- Series Resistor: 1K Ohm
- Capacitance: 15pF (Maximum at VR = 0V)
- Low leakage current (<100nA)
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Personal Digital Assistants (PDAs)
- Notebooks & Handhelds
- Portable Instrumentation
- Peripherals
- MP3 Players
アプリケーション
Packaging
- 8-pin SLP2116P8T
Order Codes
- EClamp0504T.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
ECLAMP0504T
Part Description
LOW PROFILE ECLAMP 4-LINE ESD PROTECTION
# of leads
8
Package Type
SLP2116P8T
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
