μClamp® series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.

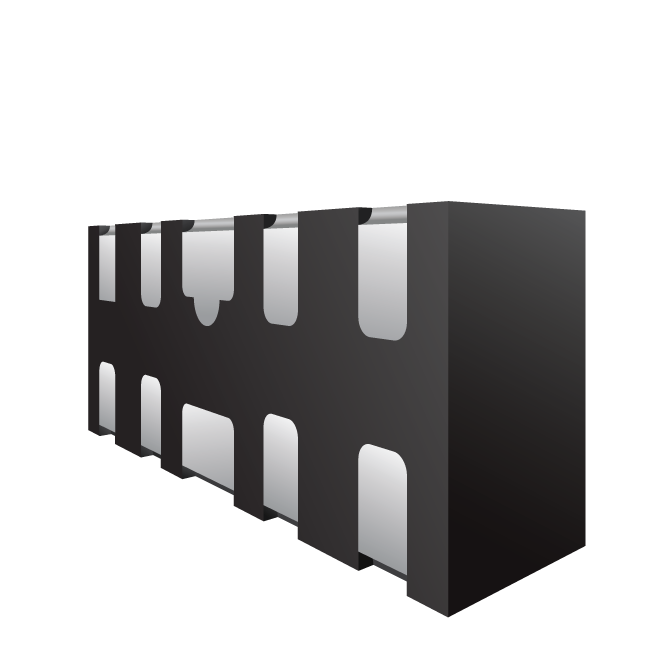

μClamp2424PWQ integrates four bidirectional TVS diodes rated at 24V. ESD characteristics are highlighted by high ESD withstand voltage (+/-30kV contact / air discharge per IEC 61000-4-2) and low dynamic resistance. Each line is rated for a maximum electrical overstress (EOS) current of 5A (tp = 8/20μs).
- Qualified to AEC-Q100 (grade 1)
- Qualified to AEC-Q101 (grade 1)
- TVS diode working voltage: ±24V
- Side wettable flanks
- Capacitance: 18pF maximum
- Automotive Applications
- CAN Bus
- FlexRay Bus
- Industrial Equipment
- Package DFN 2.5 x 1.0 x 0.55 mm-10 Lead
