RClamp2431TQ
RailClamp® TVS diodes are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (cable discharge events), and EFT (electrical fast transients).
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD)
- IEC 61000-4-4 (EFT)
- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line or one I/O pair
- Low capacitance: 0.35pF (Typical)
- Low clamping voltage
- 24V operating voltage
- Solid-state silicon-avalanche technology
- Qualified to AEC-Q100 Grade1 for Automotive
- Pb-Free, Halogen Free, RoHS/WEEE Compliant
- Automobile Antenna
- CAN Bus Ports
- Cellular Handsets & Accessories
- Wi-Fi Interfaces
- FeliCa / RFID
- Firewire
- Serial ATA
アプリケーション
Packaging

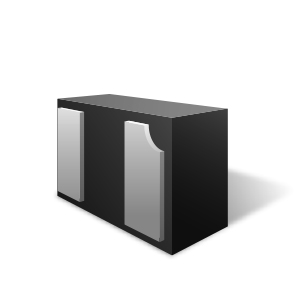

- SLP1006P2T
Order Codes
- RClamp2431TQ.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP2431TQ
Part Description
ULTRA LOW CAPACITANCE 1-LINE ESD PROTECTION
# of leads
2
Package Type
SLP1006P2T
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
Related Parts
RCLAMP2431TQTCT
