RailClamp® TVS diodes are ultra-low capacitance devices designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD), electrical fast transients (EFT) and electrical overstress (EOS). They are designed for use on high-speed ports in automotive applications. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- Qualified to AEC-Q100 (grade 1) and AEC-Q101
- Side wettable flanks
- Working voltage: 5V
- IEC 61000-4-2 (ESD) 30kV (air), 30kV (contact)
- Protects two high-speed data lines
- Very small PCB area: 0.6mm
- Automotive applications
- Industrial equipment
- Integrated magnetics / RJ-45 connectors
- 1G/2.5G/5G Ethernet
- USB 2.0

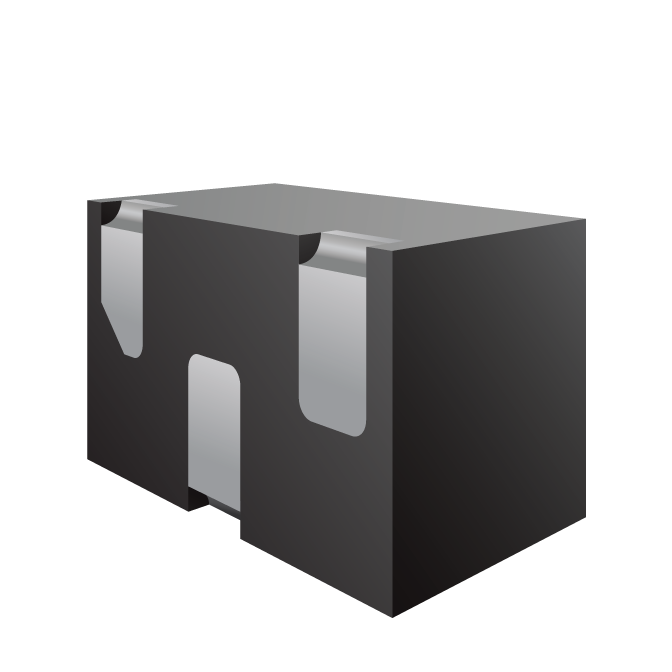

- Package: DFN 1.0x0.6x0.55mm 3-Lead
