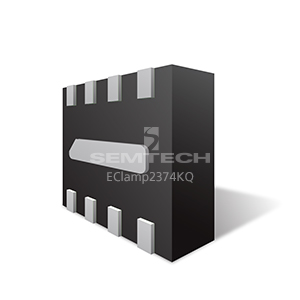

EClamp2374KQ
The EClamp®2374KQ is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI/RFI signals and provide electrostatic discharge (ESD) protection for Automotive grade electronics.
Features
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- Transient Protection to:
- IEC 61000-4-2 (ESD) ±15kV (Air), ±8kV (Contact)
- ISO-10605 (ESD) ±30kV (Air), ±30kV (Contact)
- IEC 61000-4-4 (EFT) 4kV (5/50ns)
- Qualified to AEC-Q100, Grade 1
- Resistor: 100Ohms ±15% Protection and filtering for four lines
- Filter performance: 30dB minimum attenuation 1.8GHz to 2.5GHz
- TVS Working Voltage: 5V
- Solid-state silicon-avalanche technology
- Automotive Color LCD
- Automotive Infotainment
- Color LCD Protection
- CCD Camera Lines
アプリケーション
Packaging
- SLP1713P8 - 1.7 x 1.3 x 0.50 mm, 3,000 pcs, Tape and Reel.
Order Codes
- EClamp2374KQTCT - Pb-Free, Halogen Free, RoHS/WEEE compliant.
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
ECLAMP2374KQ
Part Description
ECLAMP™ ESD/EMI PROTECTION FOR COLOR LCD
# of leads
8
Package Type
SLP1713P8
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
