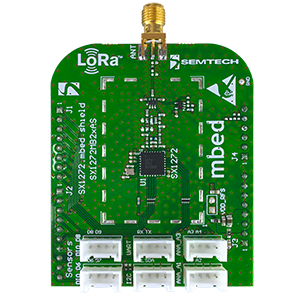

SX1272MB2DAS
This Mbed shield features Semtech's LoRa® SX1272 and is configured for 868 and 915MHz frequency bands.
Features
- Based on SX1272
- PCB Layers: 4
- 32MHz Ref Clock: XTAL
- Frequency Band: 868MHz and 915MHz
- Tx Out Power (LF/HF): 20dBm
Order Codes
- SX1272MB2DAS
Datasheets & Documentation
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
Part # | Country | Qty | Buy | Distributor |
---|
