概要
The SMDAxxC-7 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Packaging
- SO-8
- 95 pcs. Tube
- 500 pcs. Tape & Reel
Order Codes
- SMDA24C-7.T
- SMDA24C-7.TBT
PB Free/ROHS
Learn More →Features
- Protects 7 I/O lines
- Working voltage: 24 V
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- Low leakage current
- Low operating voltage
- Low clamping voltage
- Solid-state silicon-avalanche technology

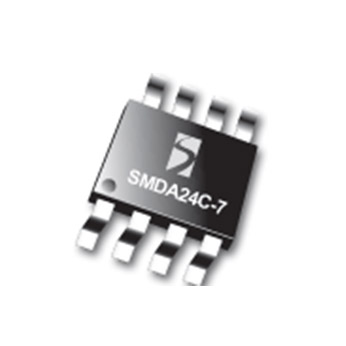

- Small SO-8 surface-mount package
- Lead-free, RoHS and WEEE compliant
Documents | Release Date | Type | |
---|---|---|---|
SMDA24C-7 Datasheet | 2019-11-06 |
アプリケーション
- RS-232 data lines
- RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- Peripherals
- Set-top boxes
- Serial and parallel ports
