概要

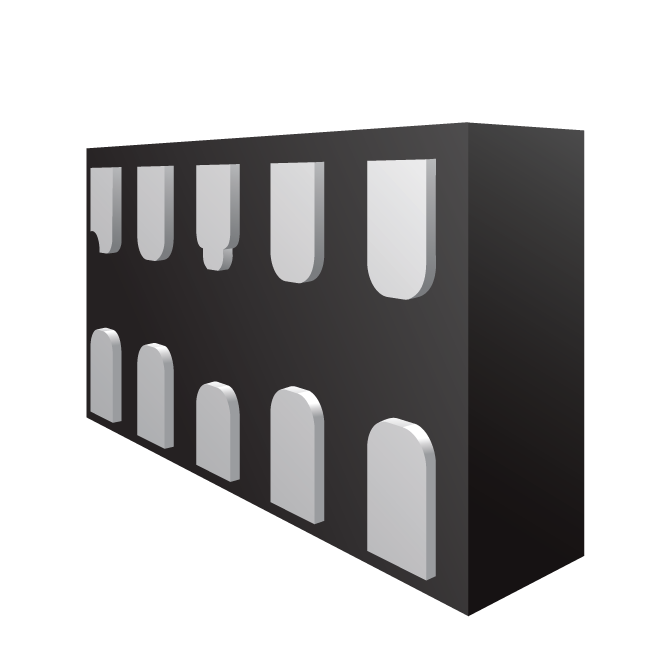

RailClamps® are low capacitance TVS arrays designed to protect high speed data interfaces. RClamp®0554T has a typical capacitance of only 0.28pF between I/O pins. They may be used to meet the ESD immunity requirements of IEC 61000-4-2. Each device is designed to protect four lines (two differential pairs).

Packaging

  • DFN 2.0x1.0x0.4mm 10-Lead

Order Codes

  • RClamp0554T.TAT

PB Free/ROHS

Learn More →

Features

  • ESD protection for high-speed data lines to
    • IEC 61000-4-2 (ESD) :±24kV (air) , ±18kV (contact)
    •  IEC 61000-4-5 (Lightning) 5A (8/20μs)
    • IEC 61000-4-4 (EFT) 40A (5/50ns)
  • Package design optimized for high speed lines
  • Flow through design
  • Protects Four I/O lines
  • Low capacitance: 0.28pF typical (I/O to I/O)
  • Low clamping voltage
  • Low operating voltage: 5V
  • Solid-State Silicon-Avalanche Technology

アプリケーション

  • Cell Phones and Accessories
  • HDMI
  • MDDI Ports
  • USB 3.0
  • LVDS
  • eSATA
  • PCI Express
