TClamp2502N

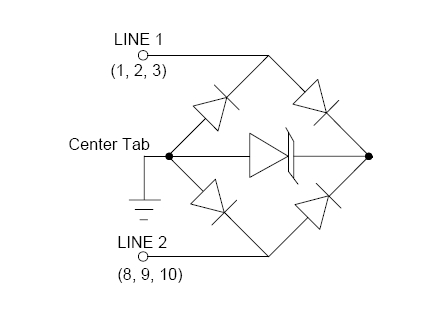

A TransClamp® is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and Lightning.
Features
- Transient protection for high-speed data lines to
- Bellcore 1089 (Intra-Building) 100A (2/10μs), IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC 61000-4-4 (EFT) 40A (5/50ns), IEC 61000-4-5 (Lightning) L5, 95A (8/20μs)
- Low capacitance (12pF line-to-line)
- Low operating voltages (2.5V)
- Low clamping voltage
- Small SLP Package saves board space
- Solid-state technology
- イーサネット
- T3/E3
- Integrated Magnetics
- Carrier Class Equipment
- Customer Premise Equipment
アプリケーション
Packaging

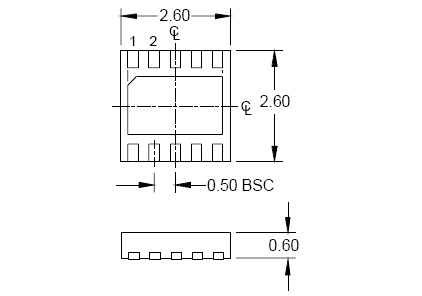

- SLP2626P10 10L
Order Codes
- TClamp2502N.TCT: Lead=Free, RoHS/WEEE Compliant, 3000 pcs, tape and reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
TCLAMP2502N
Part Description
LOW CAPACITANCE TVS FOR ETHERNET AND TELECOM INTERFACES
# of leads
10
Package Type
SLP2626P10
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
