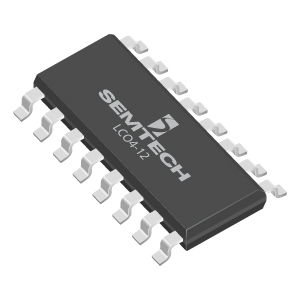

The LC04-12 has been specifically designed to protect sensitive components which are connected to highspeed telecommunications lines from over voltages caused by lightning, electrostatic discharge (ESD), cable discharge event (CDE), and electrical fast transients (EFT).
- Transient protection for high-speed data lines to
- Bellcore GR 1089 IPP=100A (2/10μs)
- ITU K.20 IPP=100A (5/310μs)
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) IPP=100A (8/20μs)
- Protects two tip and ring line pairs
- Low capacitance for high-speed interfaces
- High surge capability
- Low clamping voltage
- Solid-state silicon avalanche technology
- RS-232 and RS-423
- WAN/LAN Equipment
- Cable Modems
- JEDEC SO-16
- LC04-12.TB - SnPb , reel
- LC04-12.TBT - Pb free, reel
- LC04-12 - SnPb, tube
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
