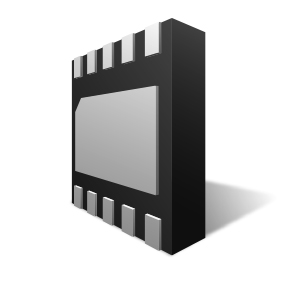

RClamp3304NA
RailClamp® low capacitance TVS array is designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE Cable Discharge Events), and Lightning.
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) 25kV (air), 15kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 25A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects up to four I/O lines
- Low capacitance (<5pF) for high-speed interfaces
- Low leakage current and clamping voltage
- Low operating voltage: 3.3V
- Solid-state silicon-avalanche technology
- 10/100/1000 Ethernet
- RJ-45 Connectors
- T1/E1 Secondary Protection
- T3/E3 Secondary Protection
- Analog Video
アプリケーション
Packaging
- SLP2626P10
Order Codes
- RClamp3304NATCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP3304NA
Part Description
RAILCLAMP 3.3V TVS ARRAYS
# of leads
6
Package Type
SLP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
mySemtech
