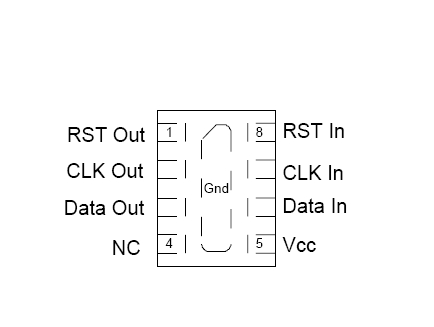

EClamp2455K
The EClamp®2455K is combination EMI filter and line termination device with integrated TVS diodes for use on SIM Card interfaces on cellular phones and other portable electronics.
Features
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- TVS working voltage: 5V
- Termination Resistors: 100 Ohms & 47 Ohms
- Capacitance: 20pF (Typical at VR = 0V)
- Protection and filtering for four lines
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- SIM Card
- Cell Phone
- PDAs and Smartphones
アプリケーション
Packaging

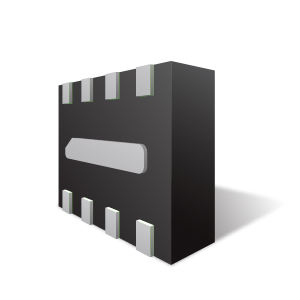

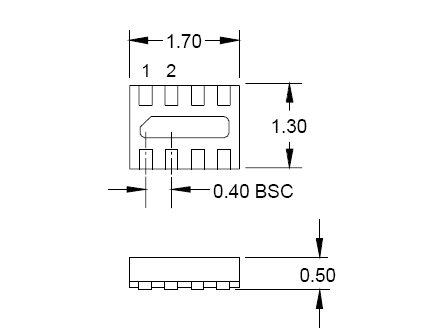

- SLP1713P8
- 3000 pcs. Tape & Reel
Order Codes
- EClamp2455K.TCT
Pb(Lead)-Free/RoHS-Green Info
