概要

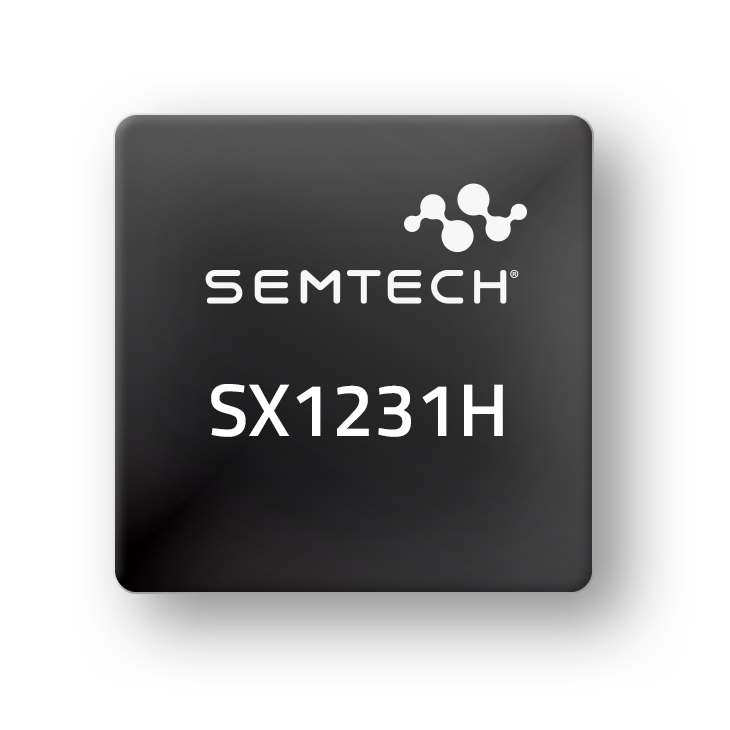

The SX1231H is a highly integrated RF transceiver capable of operation over a wide frequency range, including the 433, 868 and 915MHz license-free ISM frequency bands.
Features
- +20dBm - 100mW Power Output Capability
- High Sensitivity: down to -120dBm at 1.2kbps
- High Selectivity: 16-tap FIR Channel Filter
- Bullet-proof front end: IIP3 = -18dBm, IIP2 = +35dBm, 80dB Blocking Immunity, no Image Frequency response
- Low current: Rx = 16mA, 100nA register retention
- Programmable Pout: -18 to +20dBm in 1dB steps
- Constant RF performance over voltage range of chip
- FSK Bit rates up to 300kb/s
- Fully integrated synthesizer with a resolution of 61Hz
- FSK, GFSK, MSK, GMSK and OOK modulations
- Built-in Bit Synchronizer performing Clock Recovery
- Incoming Sync Word Recognition
- 115dB+ Dynamic Range RSSI
- Automatic RF Sense with ultra-fast AFC
- Packet engine with CRC-16, AES-128, 66-byte FIFO
- Built-in temperature sensor
| Documents | Release Date | Type |  |
|---|---|---|---|
| SX1231H Datasheet | 2018-12-21 | | |
| FCC Part 15.247 Rules Systems Using Digital Modulation | 2019-04-18 | | |
| Improving the Accuracy of a Crystal Oscillator | 2019-04-18 | | |
| RF Design Guidelines: PCB Layout and Circuit Optimization | 2019-07-03 | | |
| SX1231 Wireless Star Network with FHSS | 2019-07-03 | | |
| XE8000 Driving XE1200 transceivers - Standard API definitions | 2019-07-03 | ZIP | |
| SM1231 Gerber, BOM and Schematics | 2024-02-01 | ZIP | |
| SM1231 RF Module User Guide | 2019-07-03 | | |
| Documents | Release Date | Type | |
|---|---|---|---|
| Software Releases (Firmware) | 2019-07-03 | ZIP | |
