概要

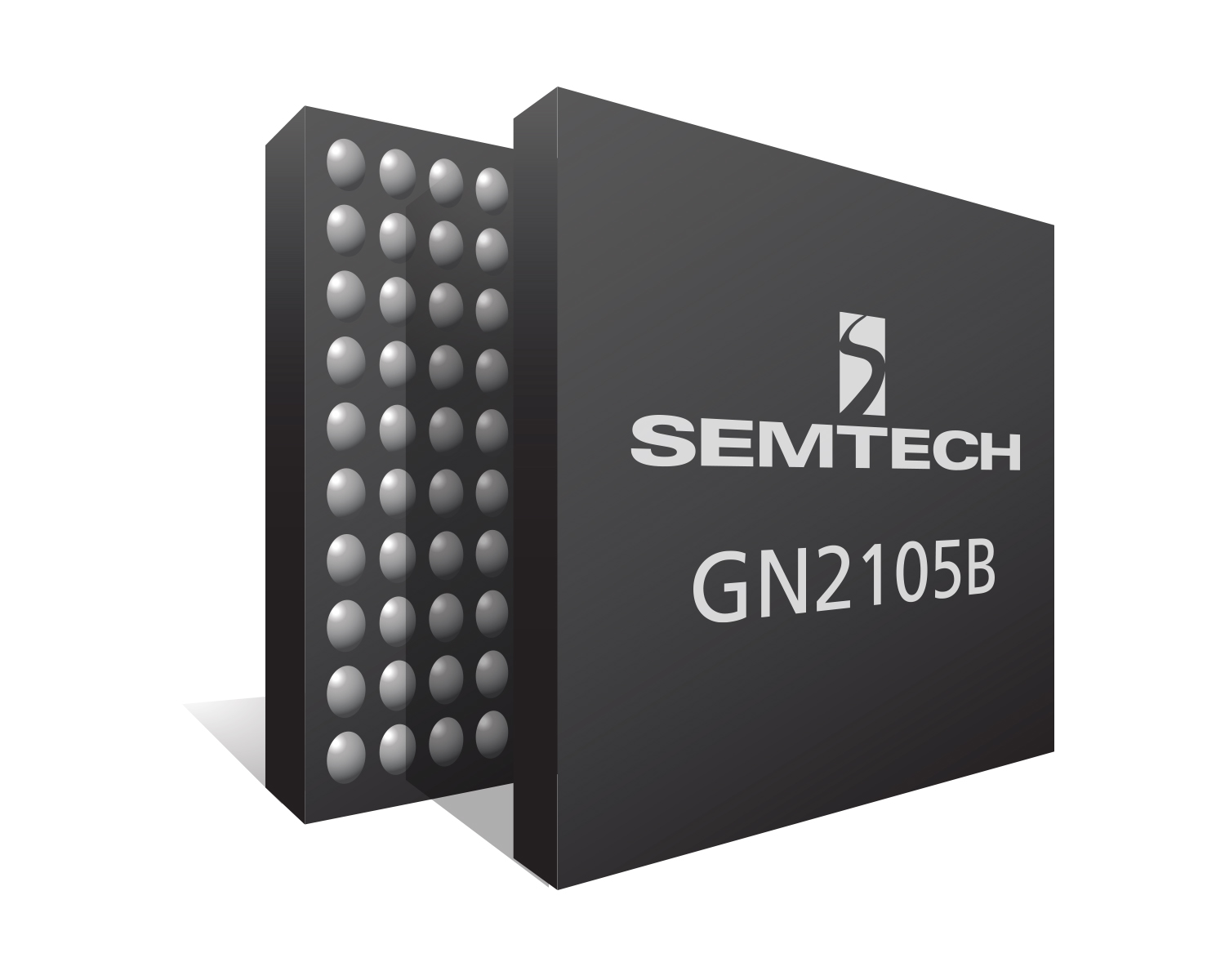

The GN2105B is a quad ClearEdge® CDR with an integrated DML laser driver designed for reference-free 24Gb/s to 28Gb/s signal conditioning within next-generation pluggable optical modules.

Please contact your sales rep for more information.

ClearEdge GN2105B CDR Product Information:

  • ClearEdge GN2105B is a quad CDR with integrated DML laser driver
  • Used in applications such as 100G QSFP28 PSM4 and CWDM4 modules
  • Extended Data Rate (24.0Gb/s to 28.1Gb/s) and i-Temp support
  • Offered in a compact 5.0mm x 5.5 mm FC-CSP package
  • Enables highly differentiated and best-in-class <3.5W module solutions when the transceiver is paired with Semtech’s ClearEdge GN2110S quad CDR with an Integrated TIA
  • Allows module designs based on both chip-on-board optics and passive TOSAs for maximum customer flexibility
    •
