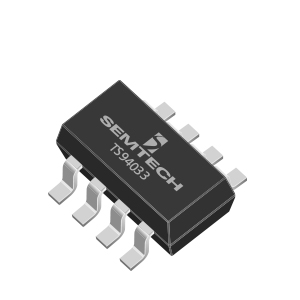

TS94033
Not Recommended for New Designs
Not recommended for new designs.
The TS94033 is a low power, low offset high-side current sense amplifier. It utilizes a chopper-stabilized configuration to provide high gain-bandwidth while reducing input offset and 1/f noise. The sense amplifiers offer high voltage inputs and a 0 to 3.3V output. The supply voltage range of 4V to 42V can accommodate a wide variety of applications.
Also available in AEC-Q100 version TS94033Q
Features
- Low Offset
- Low Offset
- High Voltage Input
- Supply voltage: 4V-42V
- Low Temperature Drift
- Low input bias current
- Pedestal Voltage for offset compensation
- Available in 8-pin SOT-23 package
- Product is lead-free, Halogen Free, RoHS / WEEE compliant
- Multi-standard compliant and non-compliant wireless chargers for:
- Cell Phones and Smartphones
- Qi-Compliant Wireless Charging Transmitters
- Tablets and eReaders
- Notebook Computers
- Telecom Equipment
- パワーマネジメント
- Battery Chargers
- Welding Equipment
アプリケーション
Packaging
- Tape & Reel (3000 parts/reel), lead-free, halogen free, RoHS/WEEE compliant
Order Codes
- TS94033SKTRC - Current Sense Amplifier
Pb(Lead)-Free/RoHS-Green Info
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
Related Parts
TS94033QSKTRC
