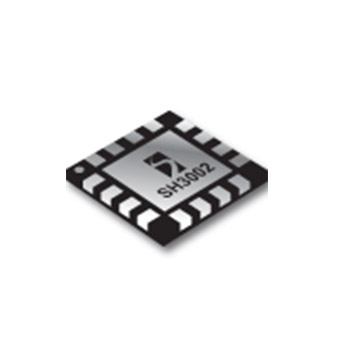

SH3002
Not Recommended for New Designs
Not recommended for new designs.
Features
- Highly integrated IC
- 3 mm x 3 mm x 0.9 mm 16-lead MLP (QFN) package
- CPU Supervisor
- Low-VDD reset programmable from 2.3 V to 4.3 V
- Both active-high and active-low reset outputs
- Clock Management System
- Replaces high-frequency (HF) crystal or resonator
- Programmable clock output from 32.768 kHz to 16 MHz
- Speed shift between multiple clock frequencies
- Adjustable spectrum spreading for EMI reduction
- Directly supports microcontroller STOP function
- Deep sleep with instantaneous auto-wakeup
- Operates from 2.3 V to 5.5 V
- Ideal for battery-operated devices
- IDD < 850 µA / 2 MHz, < 3 mA / 16 MHz, < 10 µA/standby
- Home automation and security
- Consumer products
- Portable/handheld computers
- Industrial equipment
- Any microcontroller-based product
