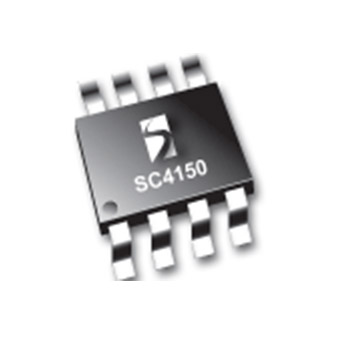

SC4150
Not Recommended for New Designs
Not recommended for new designs.
Features
- Programmable slew of the inrush current when used for hot insertion in the negative 24 V and 48 V backplane
- Closed-loop operation limits the maximum current even in short-circuit condition
- Built-in timer prevents false shutdown, when the closed-loop operation limits the current
- Sensing the drain voltage allows for immediate shutdown in short-circuit condition, where current spikes and noise is ignored
- Power-good signal
- Input UVLO and OVLO sensing
- SO-8 package
- Central office switching
- Negative 48 V distributed power systems
- Power supply hotswap & inrush control
アプリケーション
Packaging
- SOIC-8
Order Codes
- SC4150HIS-4TR: Package Minimum Tape & Reel Only
- SC4150HISTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC4150LIS-4TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC4150LISTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4150
Part Description
NEGATIVE VOLTAGE HOT SWAP CONTROLLER
# of leads
8
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
