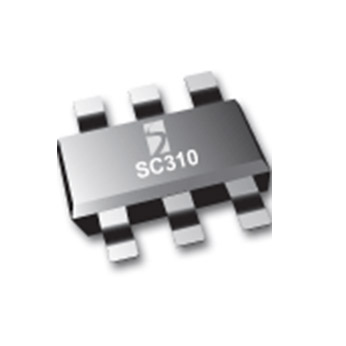

SC310
Not Recommended for New Designs
Not recommended for new designs.
Features
- Three gain versions (20V/V, 50V/V, 100V/V) available
- 2.7V to 25V input common mode range
- 3V to 25V supply voltage range
- 270 µA supply current
- 1% typical accuracy
- Buffered low impedance voltage output
- Industrial temperature range (-40°C to +125°C)
- Small, lead-free SOT23-6 Package
- Notebook and Tablet PCs
- Data Acquisition
- Battery Packs
- Charging Applications
- Industrial and Embedded Applications
アプリケーション
Packaging
- SOT-23-6
Order Codes
- SC310XSKTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC310
Part Description
HIGH-SIDE CURRENT-SENSE AMPLIFIER WITH LOW IMPEDANCE VOLTAGE OUTPUT - 20V/V
# of leads
6
Package Type
SOT-23
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
mySemtech
