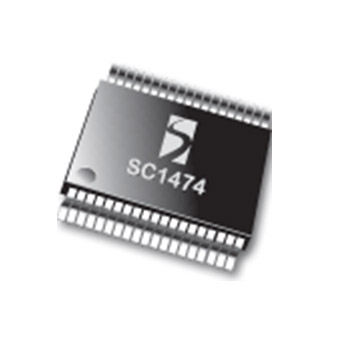

SC1474
Not Recommended for New Designs
Not recommended for new designs.
Features
- IMVP3-compliant single-chip solution
- High-speed dual-phase hysteretic controller
- VID programmable output
- Dual integrated 2 A / 4 A drivers
- Integrated VID regulator controller
- Automatic performance/battery-mode detection
- Dynamic phase current matching
- Under-voltage lock out on all Vcc inputs
- Over-voltage protection on CORE
- Current limit protection on CORE
- Thermal protection
- Programmable soft start
- Power-good flag with blanking during VID changes
- Automatic power-save at light load
- Industrial temperature range
- TSSOP-38 package
- Advanced Intel microprocessors
アプリケーション
Packaging
- TSSOP-38
Order Codes
- SC1474TSTR: Package Minimum Tape & Reel Only
- SC1474TSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1474
Part Description
SNGL CHIP IMVP-2 PWR SWTCH REG
# of leads
38
Package Type
TSSOP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
