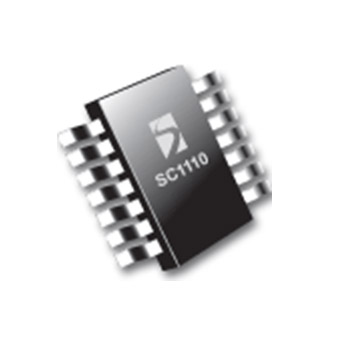

SC1110
Not Recommended for New Designs
Not recommended for new designs.
The SC1110 is a low-cost, full featured, synchronous voltage-mode controller designed to generate termination voltage in double data rate (DDR) memory systems and other applications where wide data bus need to be actively terminated.
Features
- Generates termination voltages for active termination schemes
- 1% set point accuracy
- For ± 7 A output current, transient regulation is better than ± 80 mV
- VREFIN pin available for external 50% resistive divider to allow termination voltage track of the chipset voltage
- Buffered VREFOUT for system usage
- RDSON sensing for over-current protection in hiccup mode
- Soft start and logic input enabling
- 250 kHz switching for best transient and efficiency performance
- Gate drive capable for 0.5 A sourcing and sinking
- DDR memory systems
- Active termination schemes in high-speed logic systems
アプリケーション
Packaging
- SOIC-14
- TSSOP-14
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1110
Part Description
SINK AND SOURCE DC/DC CONTROLLER FOR TERMINATION POWER SUPPLY APPLICATIONS
# of leads
14
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
