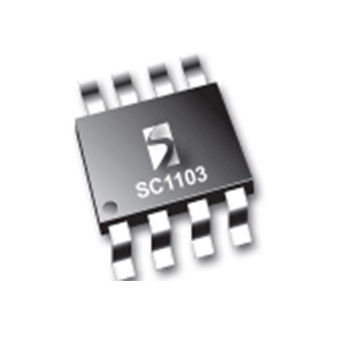

SC1103
Not Recommended for New Designs
Not recommended for new designs.
Features
- Low cost / small size
- Switch mode efficiency up to 95%
- 1% reference voltage accuracy
- Over-current protection
- 500 mA output drive
- 5 V – 12 V input power source
- SO-8 package
- Pentium® P55 core supply
- Low-cost microprocessor supplies
- Peripheral card supplies
- Industrial power supplies
- High-density DC/DC conversion
アプリケーション
Packaging
- SOIC-8
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1103
Part Description
ASYNCHRONOUS VOLTAGE MODE PWM CONTROLLER FOR 12V INPUT
# of leads
8
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
