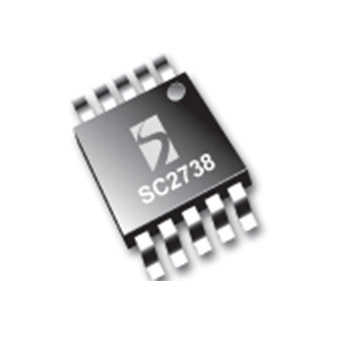

SC2738
Not Recommended for New Designs
Not recommended for new designs.
Features
- ± 3.5% reference voltage
- Two independent and fully adjustable outputs
- Wide supply voltage range permits operation from 5 V or 12 V rails
- Very low quiescent current (500 µA typical with both outputs enabled and 5 V input)
- Indivdual enable control for each output
- Individual power-good monitoring and signalling for each output
- Gate drives from input supply enable use of N-channel MOSFETs
- User-selectable dropout voltage
- Individual under-voltage protection for each output
- MSOP-10 surface-mount package
- Desktop PCs
- Graphics cards
- Simple dual power supplies
アプリケーション
Packaging
- MSOP-10
Order Codes
- SC2738IMSTR: Package Minimum Tape & Reel Only
- SC2738IMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2738
Part Description
ULTRA LOW OUTPUT VOLTAGE DUAL LINEAR FET CONTROLLER
# of leads
10
Package Type
MSOP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
