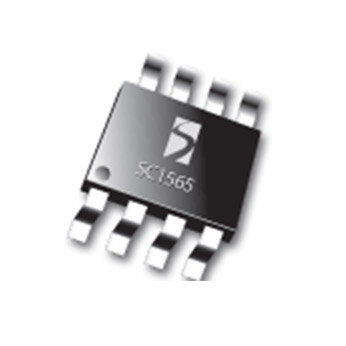

SC1565
Not Recommended for New Designs
The SC1565 is a high performance positive voltage regulator designed for use in applications requiring very low dropout voltage at up to 1.5 Amps. Since it has superior dropout characteristics compared to regular LDOs, it can be used to supply 2.5V on motherboards or 2.8V on peripheral cards from the 3.3V supply thus allowing the elimination of costly heatsinks.
Features
- 350mV dropout @ 1.5A
- Adjustable output from 1.2V to 4.8V (1)
- 2.5V and 1.8V options (adjustable externally using resistors) (1)
- Over current and over temperature protection
- Enable pin (1)
- 10µA quiescent current in shutdown (1)
- Low reverse leakage (output to input)
- Surface mount and through-hole packages
- Full industrial temperature range
- TO-220, TO-263, SOT-223 and SO-8 Packages
Note: (1) SO-8, TO-220-5 and TO-263-5 packages only.
- Battery-powered systems
- Motherboards
- Peripheral cards
- Network cards
- Set-top boxes
- Medical equipment
- Notebook Computers
アプリケーション
Packaging
- TO-263-5, SOIC-8, SOT-223, TO-263-3
Order Codes
- SC1565I5-1.8TR: Package Minimum Tape & Reel Only
- SC1565I5-2.5TR: Package Minimum Tape & Reel Only
- SC1565I5T-2.5: $500.00 min.line Bulk (50 pcs.increments)
- SC1565IM-1.8TR: Package Minimum Tape & Reel Only
- SC1565IM-2.5TR: Package Minimum Tape & Reel Only
- SC1565IM-2.5TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1565IS-1.8.TR: Package Minimum Tape & Reel Only
- SC1565IS-1.8TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC1565IS-2.5.TR: Package Minimum Tape & Reel Only
- SC1565IS-2.5TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC1565IST-1.8TR: Package Minimum Tape & Reel Only
- SC1565IST-2.5TR: Package Minimum Tape & Reel Only
- SC1565IST18TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1565IST25TRT: RoHS Compliant, Package Minimum Tape & Reel Only
- SC1565IT-1.8: $500.00 min.line Bulk (50 pcs.increments)
- SC1565IT-2.5: $500.00 min.line Bulk (50 pcs.increments)
- SC1565IT-2.5T: RoHS Compliant, $500.00 min.line Bulk (50 pcs.increments)
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1565IS
Part Description
VERY LOW DROPOUT 1.5 AMP REGULATOR WITH ENABLE 2.5V
# of leads
8
Package Type
TO-263
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
