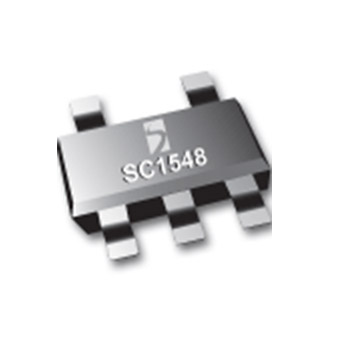

SC1548
Not Recommended for New Designs
The SC1548 is a power supply controller designed to provide a simple single regulated power supply with over current protection. It is part of Semtech’s SmartLDO™ family of products. The SC1548 can provide a 1.818V power supply for the I/O plane or 1.515V for GTL+ / AGP from either 3.3V or 2.5V. An adjustable option allows generation and control of any voltage from 1.263V up to 5V.
Features
- ± 2.5% output accuracy over line, load and temperature
- 1.515 V, 1.818 V, and adjustable output voltage options available
- Enable control
- Over-current protection
- 5-pin SOT-23 package
- Motherboards
- Graphics cards
- Microcontrollers
- Simple power supplies
アプリケーション
Packaging
- SOT23-5
Order Codes
- SC1548CSK-1.5TR: Package Minimum Tape & Reel Only
- SC1548CSK-1.8TR: Package Minimum Tape & Reel Only
- SC1548CSK.TR: Package Minimum Tape & Reel Only
- SC1548CSK1.5TRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1548
Part Description
LINEAR FET CONTROLLER
# of leads
5
Package Type
SOT-23
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
