SC33021
Product inactive. Information on this page is for reference only.

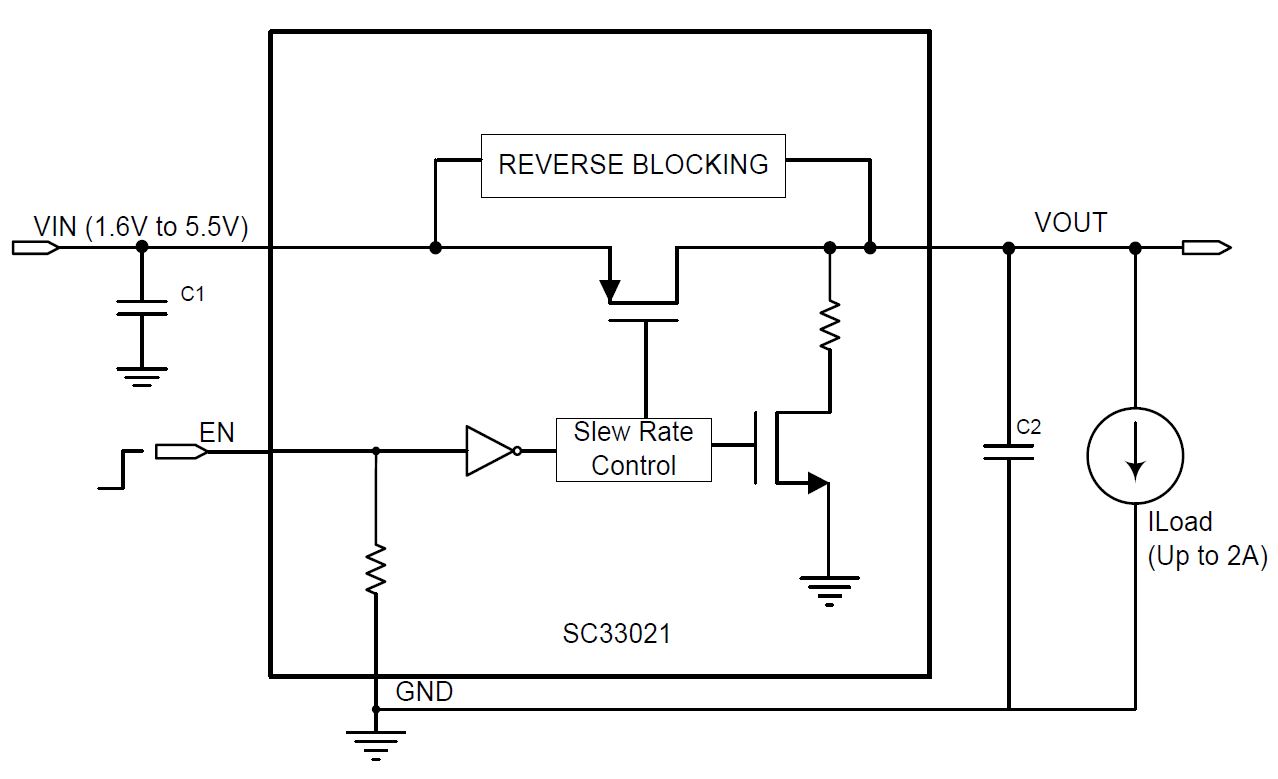

The SC33021 is an integrated 2A Load Switch with reverse current blocking. It operates from a 1.6V to 5.5V input supply. The SC33021 includes an automatic output discharge.
Features
- Input Voltage Range – 1.6V to 5.5V
- 2A Continuous Output Current
- Ultra Low Ron – 32m ohm
- Reverse Current Blocking
- Automatic Output Discharge
- Low Quiescent Current – 0.8μA
- Low Shutdown Current – 0.3μA
- Internal Soft Start
- Hardened ESD Protection 5kV
- Package: CSP – 0.9mm x 0.9mm 4–Bump
- Wearable Electronics
- Tablet PCs, eReaders
- Smartphones
- Notebook PCs, Ultrabooks
- Battery Powered Equipment
- Other Portable Devices
アプリケーション
Packaging
- CSP – 0.9mm x 0.9mm 4–Bump - 5,000 pcs, tape and reel only.
Order Codes
- SC33021CSTRT - Lead-free package only. Device is WEEE and RoHS compliant, and halogen free.
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC33021
Part Description
2A LOAD SWITCH WITH REVERSE CURRENT BLOCKING
# of leads
4
Package Type
WLCSP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
SnAgCu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
Please consult with your Semtech Sales Rep
