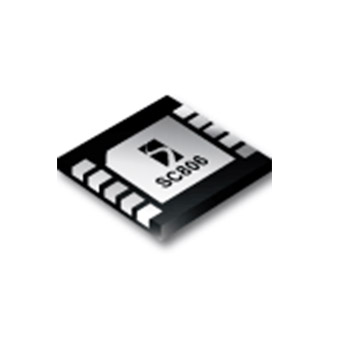

SC806
Not Recommended for New Designs
Not recommended for new designs.
Features
- Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor and thermal protection
- High Accuracy Charge Current
- Tiny 3mm x 3mm 10 lead MLP package
- Programmable precharge, fastcharge and termination current
- Battery voltage controlled to 1% accuracy
- Battery Charge Current accurate to 5% at 800mA
- Soft-start for step load and adapter plug-in
- Up to 1A continuous charge current
- Input voltage range from 3V to 6V allows seamless charging from current limited adapter
- 0.1µA battery drain current in shutdown and monitor modes
- Over-current protection in all charging modes
- Automatic loss of battery detection
- Adapter Present, Charge Status, and No Battery output LED drivers
- Cellular phones
- PDAs
- Handheld meters
- Charging stations
- USB chargers
- Digital cameras
- GPS handhelds
- Programmable current source
アプリケーション
Packaging
- MLPD-10 3x3
Order Codes
- SC806EVB: Evaluation Board
- SC806IMLTRT: MLP-10 lead-free package
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC806
Part Description
HIGH CURRENT LITHIUM-ION BATTERY CHARGER SYSTEM
# of leads
10
Package Type
MLPD
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
