SC803
Not Recommended for New Designs
Not recommended for new designs.
Features
- Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor and thermal protection
- Complete voltage ranges of 4.1 V, 4.2 V, & adjustable
- Programmable precharge, fastcharge & termination current
- Battery voltage controlled to 1% accuracy
- Soft-start for step load and adaptor plug-in
- Up to 1.5 A continuous charge current
- Charge current monitor output from microcontroller or ADC Interface
- Input voltages range from 4.2 V to 7 V
- 0.1 µA battery drain current in shutdown and monitor modes
- Operates without a battery in regulated LDO mode

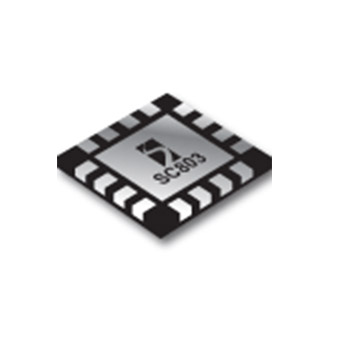

- Small 4 mm x 4 mm 16-lead MLP package
- Low thermal impedance of 50°C/watt
- Few external components
- Over-current protection in all charging modes
- Over-voltage protection with fault pin output
- All outputs able to drive LEDs and interface to host processor
- Remote Kelvin sensing at the battery terminal
- Small input & output filter capacitors
- Status output communicates charging and end of charge cycle
- Cellular phones
- PDAs
- Handheld meters
- Charging stations
- Handheld computers
- Digital cameras
- Programmable current source
アプリケーション
Packaging
- MLPQ-16 (4X4 mm)
Order Codes
- SC803IMLTR: Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC803
Part Description
FULLY INTEGRATED HIGH CURRENT LITHIUM-ION BATTERY CHARGER SYSTEM
# of leads
16
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
