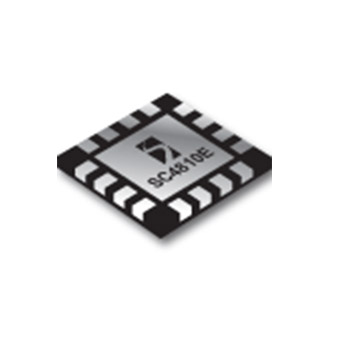

SC4810E
Not Recommended for New Designs
Not recommended for new designs.
Features
- Operation to 1 MHz
- Accurate programmable maximum duty cycle
- Line voltage monitoring
- External frequency synchronization
- Bi-phase mode of operation for low ripple
- Independent programmable delays
- Hiccup-mode current limit
- Under 250 µA start-up current
- Programmable maximum volt-second clamp
- Accessible reference voltage
- VDD under-voltage lockout
- -40°C to 105°C operating temperature
- 16 lead TSSOP or MLPQ lead free packages. Both fully WEEE and RoHS compliant
- Telecom equipment and power supplies
- Networking power supplies
- Power over LAN applications
- Industrial power supplies
- Isolated power supplies
- VoIP phones
アプリケーション
Packaging
- MLPQ-16
- TSSOP-16
Order Codes
- SC4810EIMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only (MLPQ-16)
- SC4810EITSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only (TSSOP-16)
